Agile and versatile system for speed control and improved road safety using laser technology (LIDAR).

This VITRONIC technology measures the speed of all vehicles within the capture zone without requiring road-embedded equipment such as loops or piezoelectric sensors.

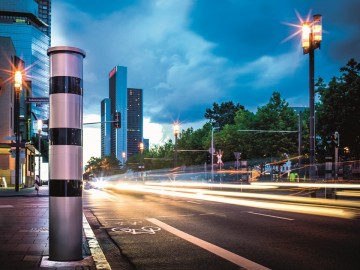

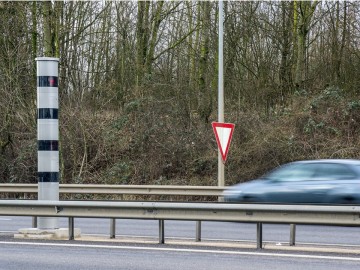

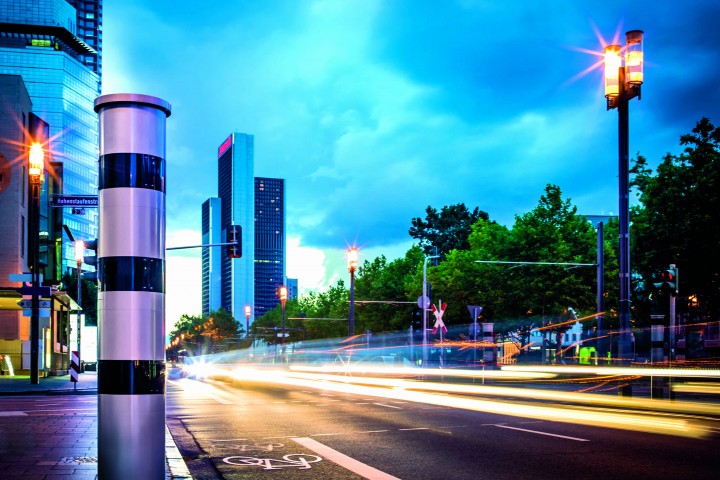

Elegant and functional: the city design housing

The fixed PoliScan ^speed system is integrated into a specially designed urban-style housing, providing optimal support for the LIDAR measurement technology. The sleek column is based on individually rotatable segments, allowing simultaneous monitoring of incoming and outgoing traffic. The City Design Housing has space for up to two measurement and documentation units, including flashes. As a result, the fixed PoliScan ^speed enables traffic monitoring in two travel directions from a single location. Speed enforcement is possible from the median or the roadside.

Photo evidence with optimal driver identification

All fixed PoliScan ^speed systems are equipped with two high-resolution digital cameras with different focal lengths. Combined with the continuous tracking function of the LIDAR technology, PoliScan ^speed provides lane-focused photographic evidence with optimal license plate and driver identification for each violation—even in heavy traffic or during lane changes. The system automatically places a frame around the license plate, making it easier to clearly match each speeding violation. PoliScan ^speed is available with cameras for either color or black-and-white images.

Digital incident data

PoliScan ^speed collects photographic evidence along with all other incident data such as measured speed, time, and location in a digital incident record. On-site encryption and a proprietary file format offer protection against tampering and unauthorized access. Case data can be downloaded locally or transferred via a network. PoliScan ^speed provides flexible support for integration with back-office processing systems. If a network connection is available, the system can also be monitored remotely.

Combination with red light enforcement

PoliScan ^speed can also be combined with VITRONIC’s red light enforcement solution. PoliScan ^red+speed combines all the benefits of VITRONIC’s stationary speed enforcement with advanced red light enforcement.

Advantages

• Laser-based speed enforcement without road-embedded equipment (no loops or piezo sensors required)
• Flexible housing allows monitoring in one or two driving directions
• Installation on the median or roadside
• Dual cameras for optimally focused photo evidence
• Clear violation matching in photographic evidence
• Color or black-and-white images
• Encrypted digital incident documentation
• Remote access for incident data transfer and system monitoring
• Integration with all back-office systems
• Automatic calibration validity monitoring
• Can be expanded to include red light enforcement
